Mica Heating Elements Case Study: Custom Solutions for Industrial Duct Ventilation & Clothes Dryers

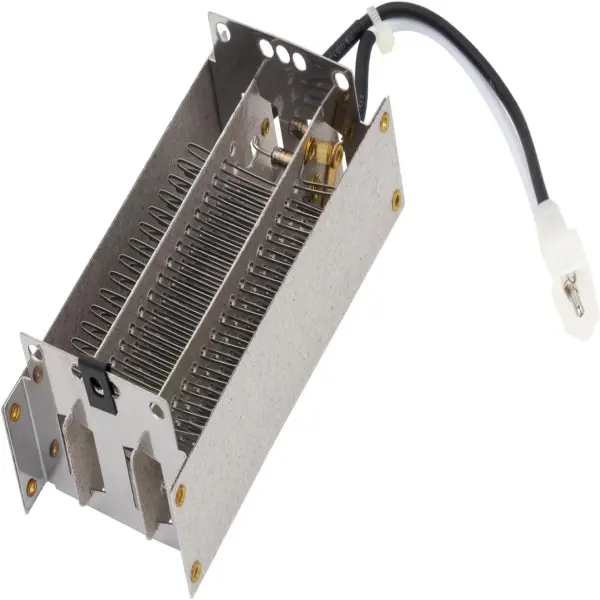

：Custom Mica Heating Rack for Industrial Duct Ventilation - XHC Heater (Installed in 400mm Diameter Ventilation Duct)

When it comes to industrial heating and home appliance heating systems, Mica heaters have become the preferred choice for manufacturers worldwide, thanks to their high efficiency, uniform heat distribution, and reliable performance. As a professional manufacturer of custom heating solutions, XHC Heater has successfully delivered tailored Mica heating Elements for two typical scenarios: industrial duct ventilation and clothes dryers. Below, we share the detailed specifications, real-world application effects, and strict testing processes of these products—along with why mica heating technology stands out in these high-demand use cases—hoping to provide valuable references for your project.

Case 1: Mica Heating Rack for Industrial Duct Ventilation

Industrial duct ventilation systems are critical for regulating air temperature in workshops, warehouses, and production lines—especially in cold climates or environments requiring precise temperature control (e.g., pharmaceutical storage, food processing facilities). Traditional heating solutions (like metal coil heaters) often struggle with uneven heat output, high energy waste, or short lifespans in harsh industrial conditions. Our custom mica heating rack addresses these pain points with scenario-specific design.

Core Specifications (Tailored for Duct Ventilation)

Based on client requests for a 400mm-diameter ventilation duct (used in a food packaging workshop), we finalized the following parameters:

  • Power & Voltage: 2200W at 380V (optimized to heat 1500m³/h airflow from 10℃ to 25℃ in 10 minutes)
  • Heating Area & Structure: 1.0㎡ modular rack (composed of 4 interconnected mica heating plates, each Φ100×60mm) with anti-corrosion epoxy coating (resists dust, moisture, and minor chemical fumes in the workshop)
  • Temperature Control: 50℃–250℃ (precise ±5℃ regulation via built-in thermistor, avoiding overheating that could damage duct materials)
  • Safety & Durability: Insulation resistance ≥100MΩ (tested at DC 500V), dielectric strength AC 1500V/0.5mA for 1 minute, and a service life cycle of “1 hour full-power operation + 30 minutes shutdown” (10,000 cycles, equivalent to 3 years of daily 8-hour use)

Real-World Application Results

After 6 months of deployment in the food packaging workshop:

  • Energy Efficiency: The client reported a 22% reduction in monthly electricity costs compared to their previous metal coil heater, thanks to the mica material’s 98% heat conversion rate (minimizing heat loss to duct walls).
  • Reliability: No downtime due to heating element failure—unlike the previous solution, which required monthly replacements due to corrosion.
  • Consistency: Air temperature in the duct remained stable within ±3℃, ensuring packaged food stayed dry during storage (critical for extending shelf life).
XHC Mica Heating Elements Specification Table for Industrial Duct Ventilation (Power Density 5-15W/cm²)

Case 2: Mica Heating Rack for Clothes Dryers

Home and commercial clothes dryers demand heating elements that balance compactness, energy efficiency, and fabric safety. Overheating can damage delicate fabrics, while inefficient heating prolongs drying time—both of which harm user experience. Our custom mica heating rack for a 8kg-capacity commercial dryer solves these issues with optimized design.

Core Specifications (Optimized for Clothes Dryers)

For a client producing laundromat-grade dryers, we designed a flat mica heating plate solution:

  • Power & Voltage: 1200W at 220V (matched to the dryer’s airflow rate of 800m³/h, drying a full load of cotton towels in 45 minutes)
  • Size & Structure: 120×100×30mm flat heating plate (thin enough to fit the dryer’s internal cavity, with evenly distributed nickel-chromium heating wires to avoid hot spots)
  • Temperature Stability: 40℃–80℃ (ideal for fabric protection; the heating plate automatically adjusts power when the temperature exceeds 85℃)
  • Service Life: Tested for 10,000 cycles of “1 minute operation + 1 minute shutdown” (simulating frequent on-off use in laundromats), with no degradation in heat output

User Benefits

The laundromat client noted key improvements after switching to our mica heating rack:

  • Faster Drying: Average cycle time decreased by 18% compared to their old ceramic heater, reducing customer wait time.
  • Fabric Safety: No reports of fabric damage from overheating—critical for retaining commercial clients.
  • Low Maintenance: After 12 months of daily use, 98% of the dryers’ heating elements were still functioning without issues (vs. 75% for the previous solution).
XHC Mica Heater Plate Specifications for Clothes Dryers (120×100×30mm Size)

XHC’s Strict Testing Processes: Guaranteeing Performance & Safety

To ensure our Mica heaters meet global industrial and appliance standards, every batch undergoes 5 layers of testing—far beyond basic compliance:

  1. Performance Testing: Continuously operate at rated power for 1000 hours in a simulated application environment (e.g., 95% humidity for duct heaters, 60℃ ambient temperature for dryer heaters) to verify heat stability and power consistency.
  2. Environmental Testing: Subject to 50 thermal shock cycles (from -20℃ to 250℃) to ensure the mica sheet and heating wire do not crack or separate.
  3. Safety Testing: Conduct insulation resistance, leakage current, and overheating protection tests (per CE, UL, and RoHS standards) to eliminate electrical hazards.
  4. Durability Testing: 5000 on-off cycles (mimicking real-world use frequency) to confirm no loss of contact or internal fractures.
  5. Field Pilot Testing: Deploy 10 sample units with a partner client for 30 days of real use, collecting data on energy consumption and performance before mass production.

For example, in the duct heater pilot test, we adjusted the anti-corrosion coating thickness after noticing minor wear in a dusty workshop—ensuring the final product could withstand harsher conditions.

Why Mica Heating Elements Are the Right Choice for Your Application

Mica is a naturally heat-resistant mineral (melting point over 1000℃) that offers unique advantages over ceramic, metal, or PTC heaters:

  • Uniform Heat Distribution: Mica’s excellent thermal conductivity ensures no hot spots, critical for fabric safety (dryers) or consistent air temperature (ducts).
  • Energy Efficiency: High heat conversion rate (up to 98%) reduces power waste, aligning with global energy-saving trends.
  • Customizability: Mica sheets can be cut into complex shapes (flat plates, curved racks) to fit tight spaces (e.g., dryer cavities) or modular systems (e.g., duct racks).
  • Cost-Effectiveness: Longer service life and lower energy use translate to lower total cost of ownership for clients.

Choose XHC for Your Custom Mica Heating Solution

At XHC Heater, we don’t just sell Mica heating Elements—we deliver tailored solutions aligned with your application’s unique needs:

  • End-to-End Customization: Adjust power, size, voltage, and structure (e.g., snap-on installation for dryers, bolt fastening for ducts) to fit your equipment.
  • Global Compliance: All products meet CE, UL, RoHS, and ERP standards, supporting your market access in Europe, North America, and beyond.
  • Fast Prototyping: We provide sample units in 7–10 business days, so you can test performance before mass ordering.

Whether you need mica heating solutions for industrial duct ventilation, clothes dryers, or other scenarios (e.g., plastic molding, medical equipment heating), our team is ready to support you. Visit our official website https://xhc-heater.com/ to browse more case studies, or contact us directly for a free sample and personalized quote.

Pro Tip for Optimizing Heating Systems

When selecting a mica heater, always share your application’s key parameters (airflow rate, ambient temperature, space constraints) with your supplier—this ensures the solution is optimized for efficiency, safety, and longevity.
